| DESIGN CODES: | ASME SECTION VIII DIV-1, EN-13458, I.S 2825 AND SMPV (U) RULES |
| DESIGN PRESSURE: | 3 KG/CM 2 TO 50 KG/CM 2 |
| WORKING PRESSURE: | 1 KG/CM 2 TO 40 KG/CM 2 |
| DESIGN TEMPERATURE: | -196°C (-320°F) TO +65ºC |
| CAPACITY RANGE: | 200 LITERS TO 150000 LITERS (WORKING VOLUME) |
| VAPOR SPACE: | 6 TO 10 % OF WORKING CAPACITY |
| EVAPORATION RATE: | 0.2% TO 1.2% PER DAY |
Liquid storage tanks are containers employed to store liquid oxygen and nitrogen. We are a manufacturer and supplier of many types of containers to fulfill the requirement of different customers. Some of our popular types of storage tanks include cryogenic liquid cylinders, cryogenic storage tanks, etc. Liquid oxygen and liquid nitrogen is stored, shipped, and handled in various types of containers, depending upon the quantity required by the user. We have experienced engineers and international collaboration to design and manufacture the liquid oxygen filling tanks and nitrogen filing tanks as per the applicable codes and specifications for the temperatures and pressures involved. They are capable of storing from a few liters to many thousands of gallons.
We are a leading and well established company in New Delhi, India and popular for manufacturing high quality and cost effective liquid storage tanks. The tanks come in diverse sizes in order to meet the requirement of different users. We have different teams to analyze the market and thus upgrade our products and services to the international level. We are a 100% EOU company so entitled to buy raw materials at tax free rates and thus become able to supply the products at huge discount rates.
Cryogenic Vessel is essentially a double walled cylindrical tank, annular space between inner and outer vessel is filled with insulating material and evacuated to a high vaccum to achieve minimum evaporation losses. The cold converter is fitted with pressure building arrangement with automatic pressure build - up regulator.
Design of cryogenic equipment like vessels, it is compact, sturdy and easy to operate. Top end liquid filling reduces the pressure inside the tank and pressure increases in bottom filling. Pressurizing system enables operator to increase the pressure during liquid unloading to tanks or gas line vaporizers. By regulating the opening of both top and bottom filling valves, there is no significant change of pressure during liquid delivery. This results in constant liquid supply to vaporizer.
Storage at temperature upto (-196°C) ranging from 200 ltrs to 1,50,000 ltrs with option of low and high pressure Cold converters are used to allow the supply pressure pipe line networks after gasification in atmospheric heat exchangers, storage tanks supply networks or tanks of smaller capacity for low liquid temperature directly.

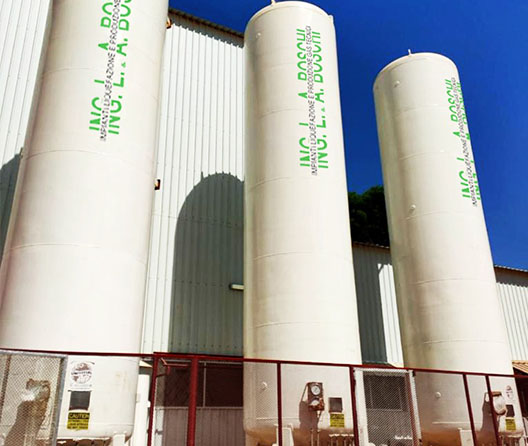

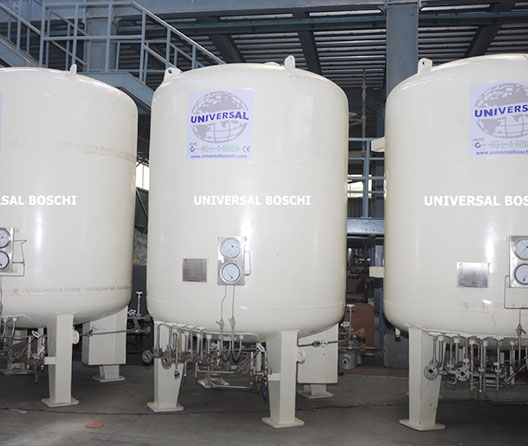

Liquid Storage Vertical Tanks: The tanks are manufactured as per the requirement of international standards. Some main features of the tanks are low area requirement, simple operation, high safety and low evaporation rate.

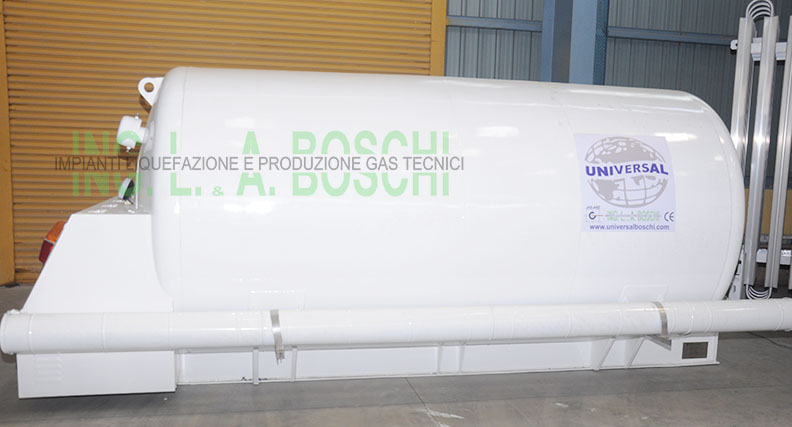

Liquid Storage Horizontal Tanks: Our horizontal tanks are simple tube & shell structure. They do not need to replace the insulation material regularly. They are also popular for excellent insulation, small area requirement and low static evaporation.
Cryogenic Liquid Transport Tank: Also called as cryogenic liquid transport tank, the transport tanks are designed in a manner they can be transported from one place to another easily. High quality raw materials and latest technology ensure long life and smooth performance.
Our company manufactures oxygen storage tanks and nitrogen storage tanks and supplies them all over the world. They are tested many times to ensure smooth performance and long life. We also offer discount time after time so contact with our customer care executive team to get to know the ongoing offers. If you have any question in your mind, just let us know. Send us email and you will get response in no time.
We have international collaboration to get the latest technology and designs. Our engineers carry our research and development to get the best technology. Our designs are also approved for international markets. Our tanks not only require minimum area, but also easy to carry from one place to another. Mobile tanks are manufactured and designed to carry from one place to another.
Our company is home to a number of skilled and trained engineers to manufacture and supply the latest liquid storage tanks. We also have trained employees to pack the items professionally and supply them all over the world. Our customers are located almost all over the world, including the USA, the UK, Nigeria, Germany, France and Gulf Countries. Our assistance can be approached by anyone round the year.
Our customer care department remains open round the clock to get the queries solved. If you have anything in your head, call us so that we can come to know. Our executives would offer solution. If you have question in your mind, let us be informed. Even technical quotation is also available in no time. We can be approached through all medium of communication.
